Mold manufacturing
High-precision, difficult-to-structure mold factory built through component and modular production methods.
– ★ Comprehensive HUDSON design technical standards to maintain stable and high-level design output.
– ★ Automatic design import, effectively reduce design time.

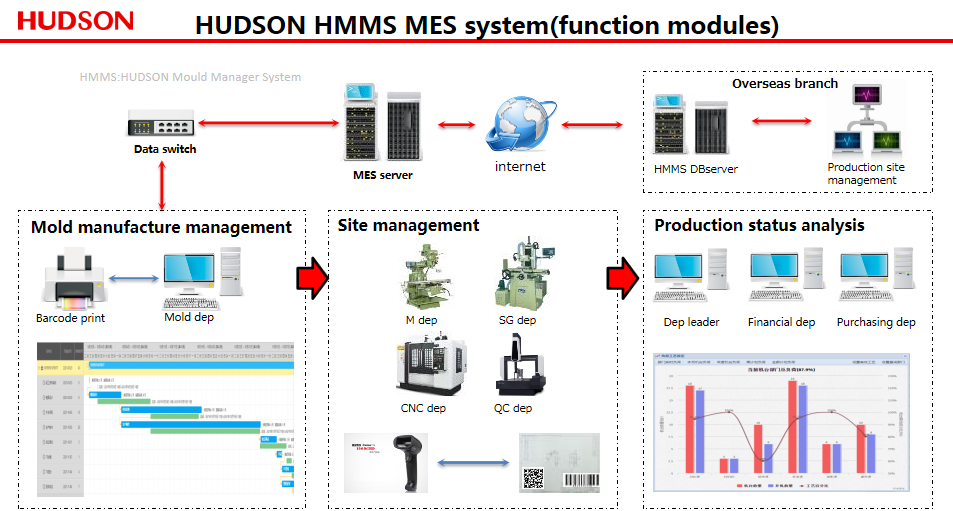

– ★ Introduce quality inspection system and online inspection technology for the entire processing project to ensure processing accuracy.
– ★ Active technical research: practical applications of 3D waterway printing technology, DLC surface strengthening technology, automatic glue breaking technology for dispensing ports, etc.

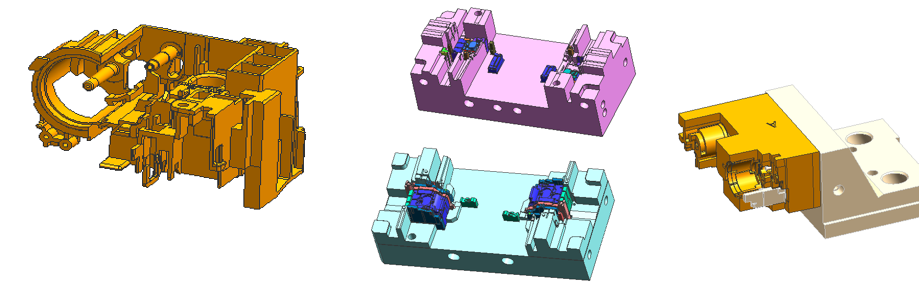

Special case in SZ mold division①
Type：Office facilities
Part name: Bracket of Ink jet
Material： PPE Z552H BLACK
Features
①Strict tolerance， 112 dimensions within ±0.05, accounting for 75% of the total dimensions 。
②The type repair is difficult, a large number of inserts required 。
③ Sufficient water cooling should be designed. Heat exchange tubes are required at some narrow space 。
④ The diameter tolerances of the column are strictly required. Ejection Angle is not allowed. The column is prone to stick to the mold and easily scratched. Only a multi-layer insertion method can be adopted for correspondence

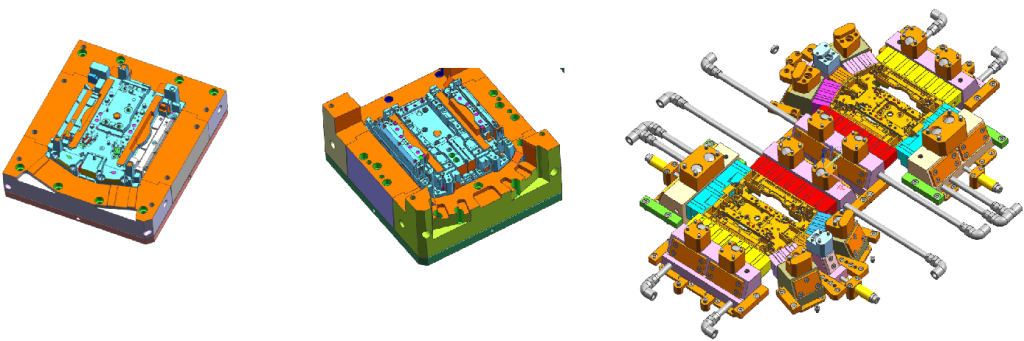

Special case in SZ mold division②
Type：Office facilities
Part name: Optical Bracket
Material： PC+ABS RN-7740D
Features
①Strict tolerance， 155 dimensions within ±0.03. The maximum tolerance requirement is ±0.015.
②The product deformation tolerance is strict, with a tolerance of 0.03 at 41 points.
Special case in SZ mold division③
Type：Office facilities
Part name: Bracket of main frame
Material： PS-HI STYRON 438
Features：
①117 dimensions within ±0.05. The maximum tolerance requirement is ±0.02.

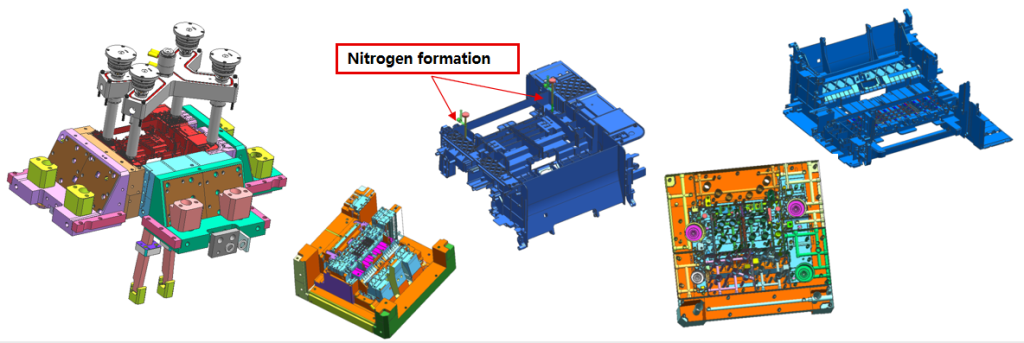

②Nitrogen added during formation.
③Complex structure，including hot runner and CAV ejection(normally located at COR)。
